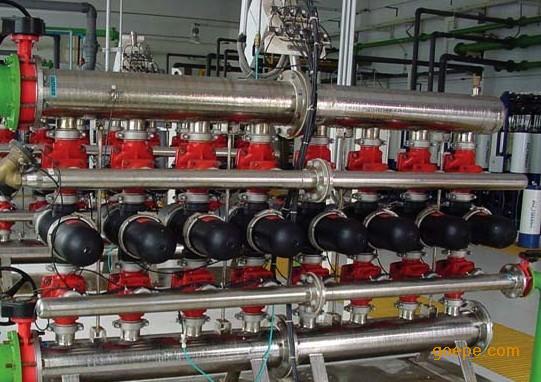

1, The basic principle

Disc filter by filtering units tied for combination to, its filtering units is mainly composed of a group of the ring with groove or edges reinforced plastic filter plate to form. When the filter from the outside in, and sewage neighboring filter plate of magazine of the formation of the edge the solid water kaplan interception down; Reverse wash water filter plate internal flow from circular lateral, will intercept in filtering the dirt from the dish washing down, the drainage outlet eduction.

Blanks in units for compact compaction added together, the upper and lower levels in the plate groove have the function of the filter intercept.

Raw water through the filtering units by the outgoing internal flow, the impurities will be greater than the grooves in the external intercept.

Disc filter core components is together in the plastic filter set, with a special filter plate groove or edges, the neighboring filter plate groove or edges of a certain size, a channel more than the size of the particle size of the channel were suspended, the filtering effect to intercept down. The product in the very great degree can replace the traditional mechanical sand filter and filter device, its superior performance, water consumption is far lower than the other products.

Disc filter in the filter plate design different structure of the two edges of these edges added together constitute intercept, including curve edges face major plays the role of suspended solids and storage intercept, using the lateral slightly larger design can ensure open reverse wash without filter plate in water pressure, loosen the lower can achieve complete reverse wash effect; Circular edge sure make water filtration precision, the channel, filter disks can provide up to 5 muon filtration precision.

Raw water into two layers of filter plate, the first among the curve edges plate, but to flow careful observation cannot enter directly. Then intercept the role is circular filter edges, less than the size of the edges of the ring grooves along edges into the ring impurities and internal interlinked curve edges, big impurities be blocked down.

Filter plate special structure still make the sewage of reverse wash out the process is more simple and easy, and not in need of sophisticated motors and drives, simple institutions such as the flow of water out of the filter can be enough to sewage. The excellent performance of the filter reduces the reverse wash time; And because the dirt not only in the disk storage and shell group, more can store between the filter plate group, so the filter can accommodate internal more dirt.

2, Characteristics

High efficiency, precise filter: 2.1

The special structure of the filter plate filter technology, performance, ensure that only the precise sensitive particle size of particles less than requirements to enter the system, it is the most effective filtering system; Specification is 5 muon, 10, 20 mu, muon 55 mu, 100 mu, 130 mu, 200 mu, etc DuoZhong, user can choose according to the requirements of different water precision filter disks. System flow rate can be adjusted flexibly according to need.

2.2 standard modular, economic cover an area:

System based on the standard disc filter unit, based on the modular design, user can choose according to the needs, flexible, strong interchangeability. Compact system, covers an area of tiny, flexible use of edge horn space for installation, such as processing water 300 m3 / h or so only covers an area of about six m2 equipment (general water filter, level 100 mu).

2.3 automatic operation, continuous water:

The filter of the combination between units, the wash process take turns alternating, work, wash switch between the state to ensure continuous water; The wash water consumption is few, accounts for only 0.5% of the water yield; As with the air, water wash assistant since more can to below 0.2%. High speed and complete the wash, just several seconds to finish

2.4 long life:

New plastic filter elements strong, without wear, no corrosion and scale and little, the DuoNian industrial practical verification, use 6-10 years to also do not have to wear, the does not age, filtering and reverse-wash effect won't due to the use of time and worse.

2.5 high quality, maintenance quantity is little:

Products meet the corresponding quality standard, all products before they leave the factory in both by the operation of testing and commissioning, do not need special tools, few parts; Easy to use, only regular inspection, almost don't need maintenance.
