1, Summarize

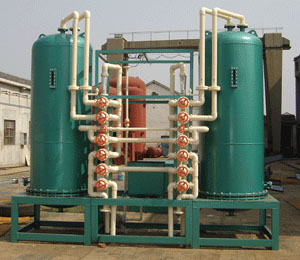

Modular water softener device is designed for small and medium-sized boiler supporting and of the design combined with two device, single stage sodium ion column, use a set of regeneration device, two single grade sodium ion column can alternate operation, simple columnar can also double parallel operation, no matter simple columnar column alternate or double column parallel operation, all can guarantee the rated produce a water yield (during any also do not affect the total water). Regeneration device set in salt dissolve box salt, in order to improve the pump rebirth, prevent resin poisoning, generally USES the refined salt regeneration.
2, Working principle
2.1 hard through the this device's exchange column (in a 732 Yang resin, sodium type) when the water through the exchange of the water column, calcium magnesium ions are the type resin absorption, and the type of sodium ion (on numerical making +) displacement to the water, and to remove the water calcium ions (Ca++), magnesium ions (Mg++), which becomes a soft water.
Sodium ion of the chemical reaction ion equations are as follows:
Ca2 + + [R] = 2 making making + + [R = Ca]
Mg2 + + [R] = 2 making making + + [R = Mg]
The above formula for carbonate ions reaction, or the carbonate hardness apply to all, resin after exchange by making Ca2 + + type into, Mg2 + type.
2.2 sodium ions Yang resin regeneration treatment: when the water hardness of column exchange more than 1.5 mg/L, show that the column exchange resin has been failure, the application of the salt solution regeneration (recovery).
The regeneration process of ion exchange resin type for:
[R = Ca] + 2 NaCl-[R] + CaCl2 making
[R = Mg] + 2 NaCl-[R] + MgCl2 making
The resin regeneration, Ca2 +, from Mg2 + type into making + type, can continue to restore exchange ability to soften water treatment.
3, Characteristics
3.1 integrity is strong. The switch, regeneration device (including soluble salt box, salt solution box, salt pump), pipe, valve, instruments and other all assembled into a whole, use the unit just plug in water pipe and power in can quickly put into operation, greatly reduce the design, construction, installation of work.
3.2 the scientific management of the operation. This device soluble salt dissolve the salt box and effective volume are calculated by a regenerative capacity design, need not the scale and hydrometer can accurately proper density made a renewable with salt fluid quantity, can avoid the careless operation caused by the abuse of salt. At the same time, this device has the rotor flow meter, operation and regeneration are easy to control according to design requirements, in order to ensure that the softening and regeneration effect.
3.3 the operation simple and convenient. Control valves instrument mostly in the operation screen, the operation is convenient, dexterity.
3.4 this device equipment pipe, valves, all adopt the rigid PVC materials, corrosion resistance, long service life, the steel corrosion, exchange column high crushing strength.
3.5 with other types of the same specifications demineralized water device comprehensive comparison, and cheaper prices.
3.6 with other types of the same specifications demineralized water device comparison, has the cover an area of an area small, infrastructure investment is less, installation quickly etc. Characteristics.
3.7 regeneration YanLiang small, unit consumption consumption YanLiang 90 g/g-N.
