1, Summarize

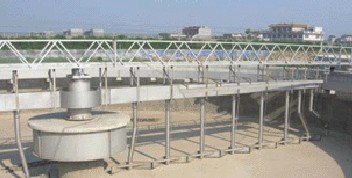

Sucking the periphery drive machine used to sewage treatment plants in the large and medium-sized diameter round out on the bottom of the settlement, destabilize the sludge and excluding the scum pool. Mainly used for center around the water into the second pond, also can be used in the pool form went weeks.
2, Structure and working principle
The periphery drive by sucking machine work bridge, center bearing, row mud trough, sucking pipe center clay POTS, drive, walk device, slag discharge and leave slag device, buoys of electricity device, the overflow weir board and slag board, diversion tube, electric control cabinet etc.
The precipitation, raw water destabilize qing liquid discharge from the overflow weir, sludge in gravity settlement in the whole of traps, form a layer of high concentration NiCeng. Drive device driver to walk to work bridge, row mud slots and sucking pipe to destabilize the rotating central, drive NiBan scraping the bottom sludge will blow set to each sucking pipe mouth, in liquid level difference, the function of the sludge sucking pipe, lose mud to the center line slot clay POTS, again through the center row mud from the pool, at the same time the pool area abandoned slag device scum on wind to slag discharge from buoys. Each sucking pipe flow regulator, with a top adjust every sucking pipe flow.
3, Characteristics
Optimization design of sucking pipe spacing, sucking pipe section size and mud tank and the structural type size can guarantee carried sucking system even thoroughly absorb distribution in the bottom sediment basins sludge.
And the bottom of the pool and Angle of the reasonable agreement hard dine scrape the bottom of the components in the mud respectively set to scrape the sludge sucking pipe the mouthpiece, can effectively prevent the local mud.
On the flat round the suction nozzle structure can effectively increase the concentration of sucking.
Each blade in the upper part of sucking pipe fittings have sleeve type throttle valve, reasonable structure, operation of saving, sucking flow adjusting effect is good, handles installed in work activities case board, under the bridge is convenient and convenient for operation, also observe does not affect walking on the bridge, make working bridge whole beautiful.
Optimization design of sucking pipe flushing system can easily solve because caused power outages and sucking pipe jams.
Optimization of the water out of the tank cleaning agencies can two sides and bottom all effective cleaning.
Driving wheel outsourcing solid high wear resistance of polyurethane rubber, do not need to track, do not glue the pavement, high strength and long life.
Center bearing equipped with large rotary bearings, high strength, rigid, equipment smooth operation long life.
Two head high among low drive frame, work stress state improve stability, bridge, and at the same time improve heart, low weight bridge equipment operates smoothly, and convenient bridge.
